Heat Resistant Tubing

• Application
• Wire joining, electrical wiring insulation, automotive, marine, and industrial cable repairs

• Breakdown Voltage
• >1 kV/mm

• Coating Type
• Heat shrink polyolefin

• Color
• Transparent with colored bands (blue, red, yellow, white) to indicate wire gauge

• Feature
• Waterproof, corrosion-resistant, flame retardant, strong mechanical strength

• Heat Conductivity
• Low (materials designed for electrical insulation)

• Installation Guideline
• Insert stripped wires, crimp, then apply heat to shrink and seal

• Layer
• Dual-wall (inner adhesive sealing plus outer heat shrink sleeve)

• Material
• Polyolefin Heat Shrink Tube and Copper/Brass Connector

• Max Withstanding Temperature
• Up to 125C

• Product Type
• Heat Shrinkable Butt Splice Connector

• Rated Voltage
• 600V

• Size
• Available for 0.25-1.5 mm2 (Red), 1.5-2.5 mm2 (Blue), 4-6 mm2 (Yellow)

• Surface Treatment
• Tin-plated copper/brass core

• Tensile Strength
• Greater than 10 MPa

• Thermal Conductivity
• Low (for electrical insulation)

• Thickness
• Varies (usually 0.2 mm to 0.4 mm)

• Width
• Varies by model (commonly 3.5 mm to 6 mm)

• Application
• Grip enhancement, insulation, wire protection

• Breakdown Voltage
• 15 kV/mm

• Coating Type
• Non-coated, direct extrusion

• Color
• Green with black skidproof pattern

• Density
• 0.94 Gram per cubic centimeter(g/cm3)

• Feature
• Anti-slip, abrasion resistant, flexible

• Heat Conductivity
• Low

• Installation Guideline
• Apply over object and shrink using heat gun at 70-125C

• Layer
• Single layer

• Material
• Polyolefin

• Max Withstanding Temperature
• 125C

• Product Type
• Skidproof Heat Shrink Tubing

• Rated Voltage
• 600V

• Size
• Multiple inner diameters available

• Surface Treatment
• Textured/Skidproof finish

• Tensile Strength
• 12 MPa

• Thermal Conductivity
• ~0.3 W/mK

• Thickness
• 0.5 mm (nominal)

• Width
• Customizable as per requirement

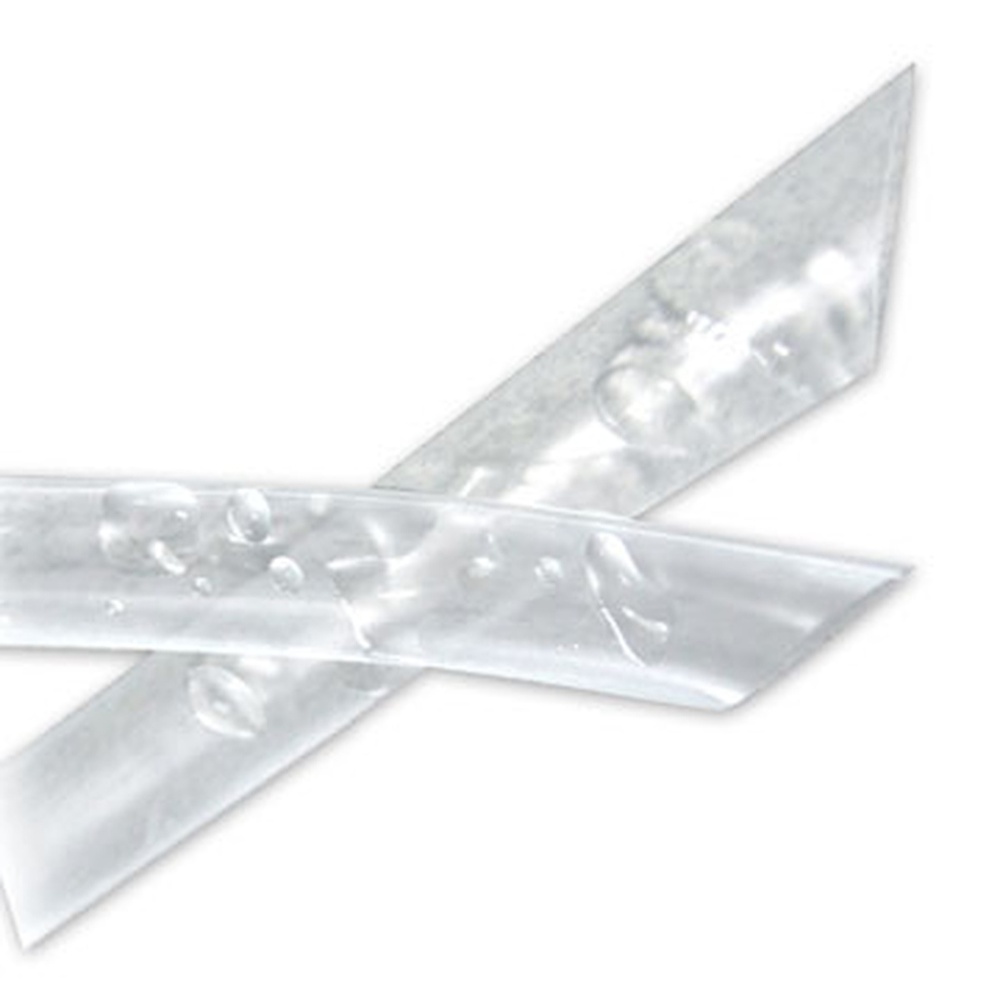

• Application
• Chemical Processing, Laboratory, Pharmaceutical, Semiconductor, Food and Beverage Industries

• Breakdown Voltage
• Approx. 19 kV/mm

• Coating Type
• Uncoated (solid PVDF material)

• Color
• Natural (Translucent)

• Density
• 1.78 Gram per cubic centimeter(g/cm3)

• Feature
• High temperature and chemical resistance, Flame retardant, Low permeation

• Heat Conductivity
• 0.19 W/mK

• Installation Guideline
• Can be cut and fitted with appropriate tube fittings

• Layer
• Single Layer

• Material
• PVDF (Polyvinylidene Fluoride), Kynar

• Max Withstanding Temperature
• 175C

• Product Type
• High Temperature Chemical Resistant Tubing

• Size
• Available in various inner and outer diameters

• Surface Treatment
• Smooth, Non-stick surface

• Tensile Strength
• 40 MPa minimum

• Thermal Conductivity
• 0.19 W/mK

• Thickness
• Standard and custom sizes available

• Width
• Customizable as per requirement

• Application
• Wire harness protection, insulation, chemical and abrasion resistance

• Breakdown Voltage
• >15 kV/mm

• Coating Type
• Uncoated

• Color
• Black, Blue

• Density
• 0.05 Gram per cubic centimeter(g/cm3)

• Feature
• Excellent chemical and abrasion resistance, flexible

• Heat Conductivity
• Low thermal conductivity

• Installation Guideline
• Shrink using heat gun or oven at 120C minimum

• Layer
• Single layer

• Material
• Flexible Polyolefin

• Max Withstanding Temperature
• -55C to +135C

• Product Type
• Heat Shrinkable Tubing

• Rated Voltage
• 600 V

• Size
• Various (custom sizes available)

• Surface Treatment
• Smooth

• Tensile Strength
• 10 MPa

• Thermal Conductivity
• 0.2 W/mK

• Thickness
• 0.25 mm (nominal)

• Width
• Up to 85 mm

• Application
• Cable insulation, protection in harsh environments, automotive, aerospace, military

• Breakdown Voltage
• >20 kV/mm

• Coating Type
• None (solid Viton structure)

• Color
• Black

• Density
• 1.9 Gram per cubic centimeter(g/cm3)

• Feature
• High chemical and high-temperature resistance, flame retardant, weather resistant

• Heat Conductivity
• Low

• Installation Guideline
• Heat with a heat gun or approved heating device to shrink in place

• Layer
• Single

• Material
• Viton Fluororubber

• Max Withstanding Temperature
• +200C

• Product Type
• Heat Shrink Tubing

• Rated Voltage
• 600V

• Size
• Available in various sizes (custom options)

• Surface Treatment
• Smooth

• Tensile Strength
• >10 MPa

• Thermal Conductivity
• Low (suitable for insulation)

• Thickness
• 0.5 mm (typically)

• Width
• Varies (customizable as per requirement)
